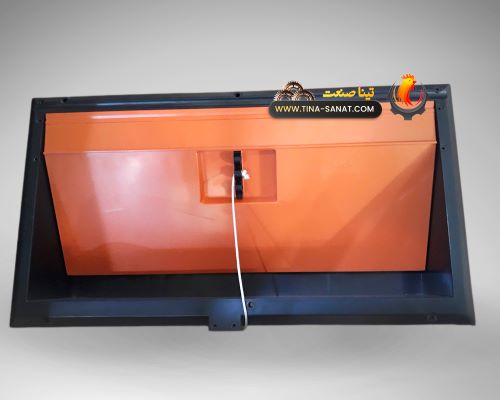

Air Inlet Valve

Optimizing the living conditions and growth of poultry in modern farms is crucial. A key component in this process is the poultry house inlet window, an effective tool for controlling fresh airflow and regulating the appropriate temperature within poultry rearing facilities. Using poultry house inlets improves ventilation and reduces heat stress in birds, ultimately leading to increased production and higher quality poultry products. Inlet windows, available in diverse and efficient designs, are easily installed in various poultry farm types. Constructed from high-quality, weather-resistant materials, these inlets ensure high durability and performance. The price of inlet windows varies depending on type and size, but the goal is always to provide the best quality at the most competitive price. The poultry house inlet is designed for easy installation and maintenance, effectively controlling airflow.

آبخوری نیپل مرغداری

Specifications

  • Reduces energy costs by up to 50% due to improved ventilation system efficiency.
  • Reduces heat stress through proper airflow from the inlet.
  • Reduces humidity and ammonia levels through airflow.
  • Provides sufficient air without a noticeable drop in shed temperature.
  • Concealed inlet spring protects against moisture and dirt.
  • Uses a flat spiral spring, reducing pressure on the gearbox motor and extending its lifespan.
  • Features a seamless design for optimal minimal ventilation.
  • Provides excellent insulation against outside air.
  • Constructed from robust ABS plastic, resistant to impact, bending, and abrasion.
آبخوری نیپل
آبخوری نیپل مرغداری
آبخوری اتوماتیک
آبخوری نیپل کاسه ای
آبخوری نیپل کاسه ای
آبخوری نیپل کاسه ای


آبخوری نیپل کاسه ای
آبخوری اتوماتیک
آبخوری نیپل مرغداری
آبخوری نیپل
آبخوری نیپل
آبخوری نیپل

Poultry Fan Operation

Tina sanat's inlets are comprised of several components. The functionality of each component is detailed below.

Poultry house inlet valves are designed and calculated using advanced methods by our specialists. They are manufactured in various sizes, considering the installation location on the poultry house walls, ceiling height, regional climate, and prevailing wind direction. The aerodynamic design of the inlet door ensures air adhesion and directs airflow to the highest points in the house.

This type of adjustable inlet valve is known as a negative pressure ventilation system because it operates based on the pressure difference between the outside and inside air. When the inlet valve is opened, over 70% of the air flows from under the inlet door. This is highly effective in summer for cooling poultry and preventing wall dampness.

Manual adjustment of the poultry house air valve is performed by personnel based on the house temperature and their experience. A winch is used for this purpose. Automatic adjustment is controlled by the poultry house automation system based on factors such as chick age, temperature, humidity, pressure, and levels of harmful and polluting gases within the house. In this method, the poultry house automation system simultaneously adjusts the inlet valve and starts the ventilation fans.

Standard poultry house inlet window dimensions are generally expressed as width and height, using centimeters or inches. These dimensions vary depending on the type (manual, automatic, ceiling, wall-mounted) and capacity. For example:
Small inlets: Dimensions of 30x60 centimeters are used for small houses. Large inlets: Have larger dimensions and are used for large houses with high poultry density. In these cases, several medium or small inlets are often used in combination to ensure even airflow distribution.

Calculating Appropriate Dimensions:
Precise inlet dimension calculation requires expertise and the use of specialized formulas and software. Important factors in the calculation include:
House Volume: The size of the house and the ventilatable space.
Poultry Population: The number of birds and their density per unit area.
Poultry Type: The species and age of the poultry affect their ventilation needs.
Climate Conditions: Ambient temperature, humidity, and wind speed.
Ventilation System Type Natural or mechanical ventilation system.

Calculating The Number Of Inlets Before installation, calculate the number of Inlets needed for the house. This calculation is based on the length, width, wall height, and roof of the house.

Installation LocationInlet windows should be installed on the longitudinal walls of the house at calculated intervals from each other and opposite each other.

Adjust the Opening and Closing Mechanism: The opening and closing mechanism should be properly adjusted to operate automatically at specified times. This mechanism may include cables, gears, or a motor.

Thermal Insulation: Using appropriate thermal insulation in the window frame helps maintain the inside temperature of the house.

Comparison of Laying Hen Cage Types
Base Model External Dimentions (cm) Internal Dimentions (cm) Inlet Material Airflow At 15 Pascal (m3/h)
VORTEX 30 x 60 26 x 26 ABS 2000
BIG HERDSMAN 30 x 60 26 x 26 ABS 2000

Why Us?

Tina Sanat Company, in collaboration with several engineering and parts manufacturing companies, has designed, manufactured, and installed various equipment in diverse fields. The company consistently strives to improve its designs based on past experience, existing models, and the expertise of its experienced engineers. In manufacturing and assembly, continuous and precise quality control, along with expert consultation, ensures high product quality.

Competitive Price
Fast Shipping
High Quality
Expert Consultation

Inlet Valve Price

Looking for the best price for a poultry house inlet? The price of a poultry house inlets varies depending on dimensions, material, and technical features. We offer various types of inlet valves, so the price of different inlets also varies. For an exact price and free consultation to choose the best inlet to suit your needs, contact us now. Benefit from our expert advice and receive the best price for a poultry house inlet.
